BLACK ARM: LIVE PICTURES AT FULL SPEED
Dynamic perspectives, smooth camera movements, exceptionally quiet operation and limitless flexibility.
These are just a few advantages of the Black Arm RemoteHead
Flexible recordings, even during high-speed drives

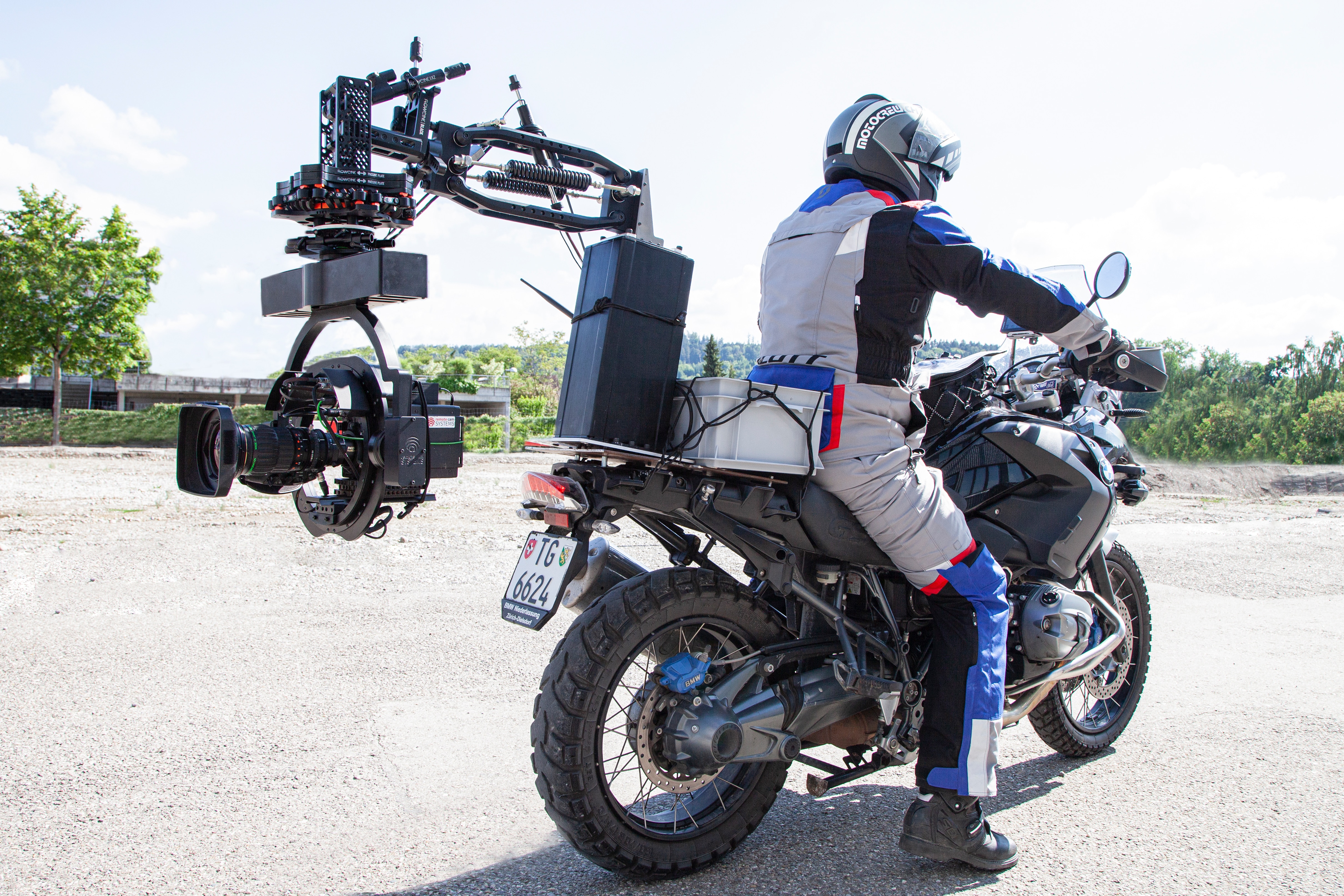

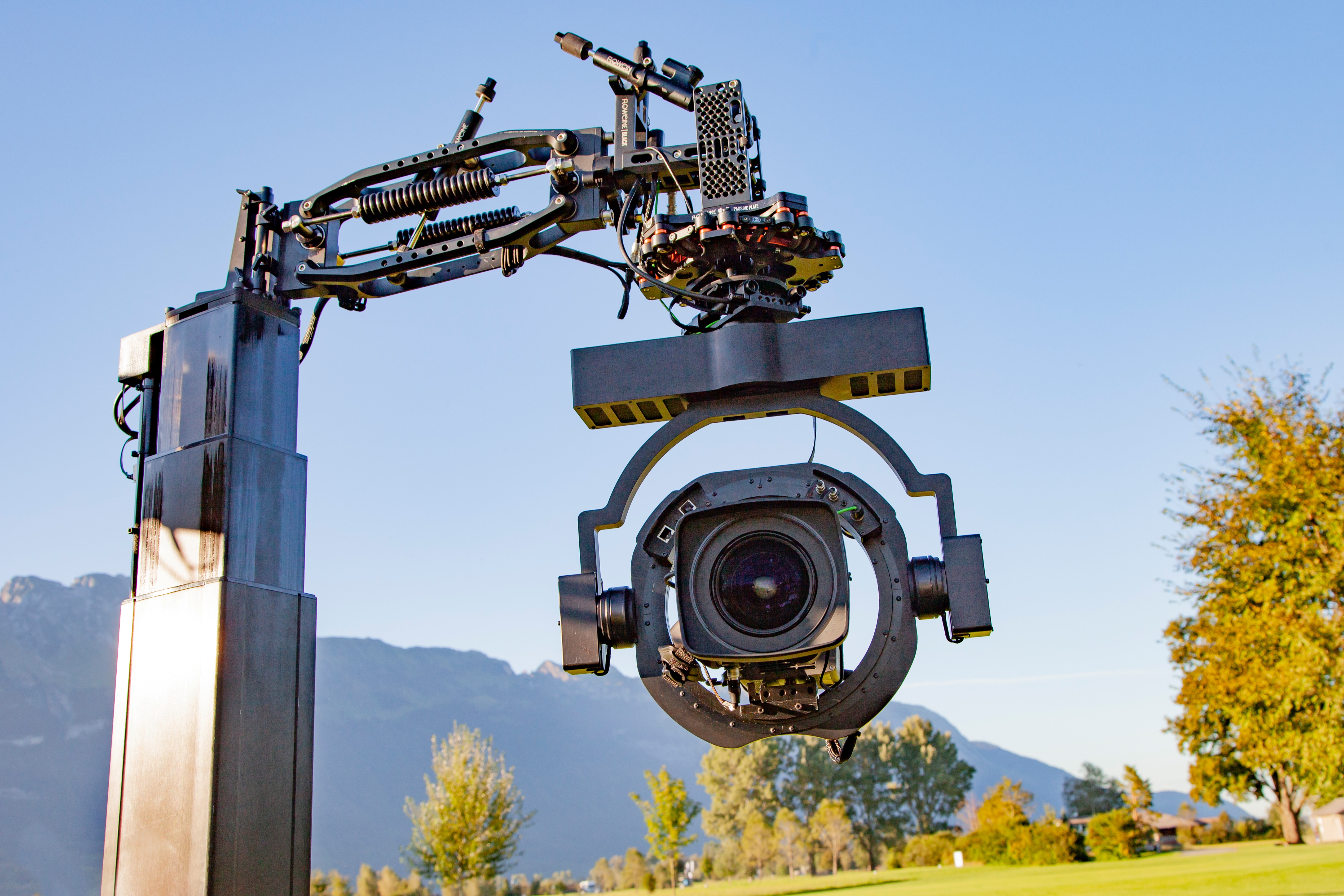

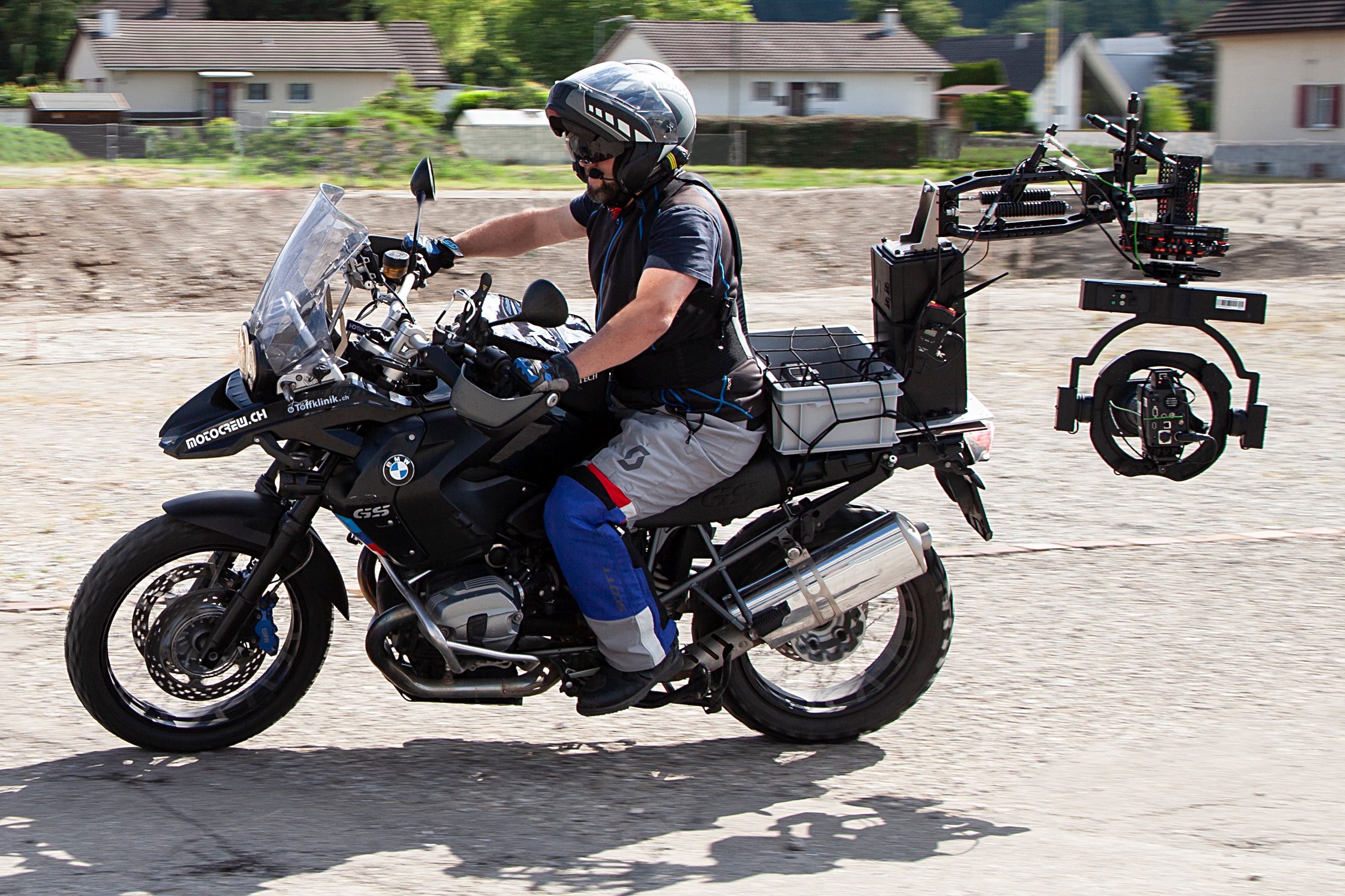

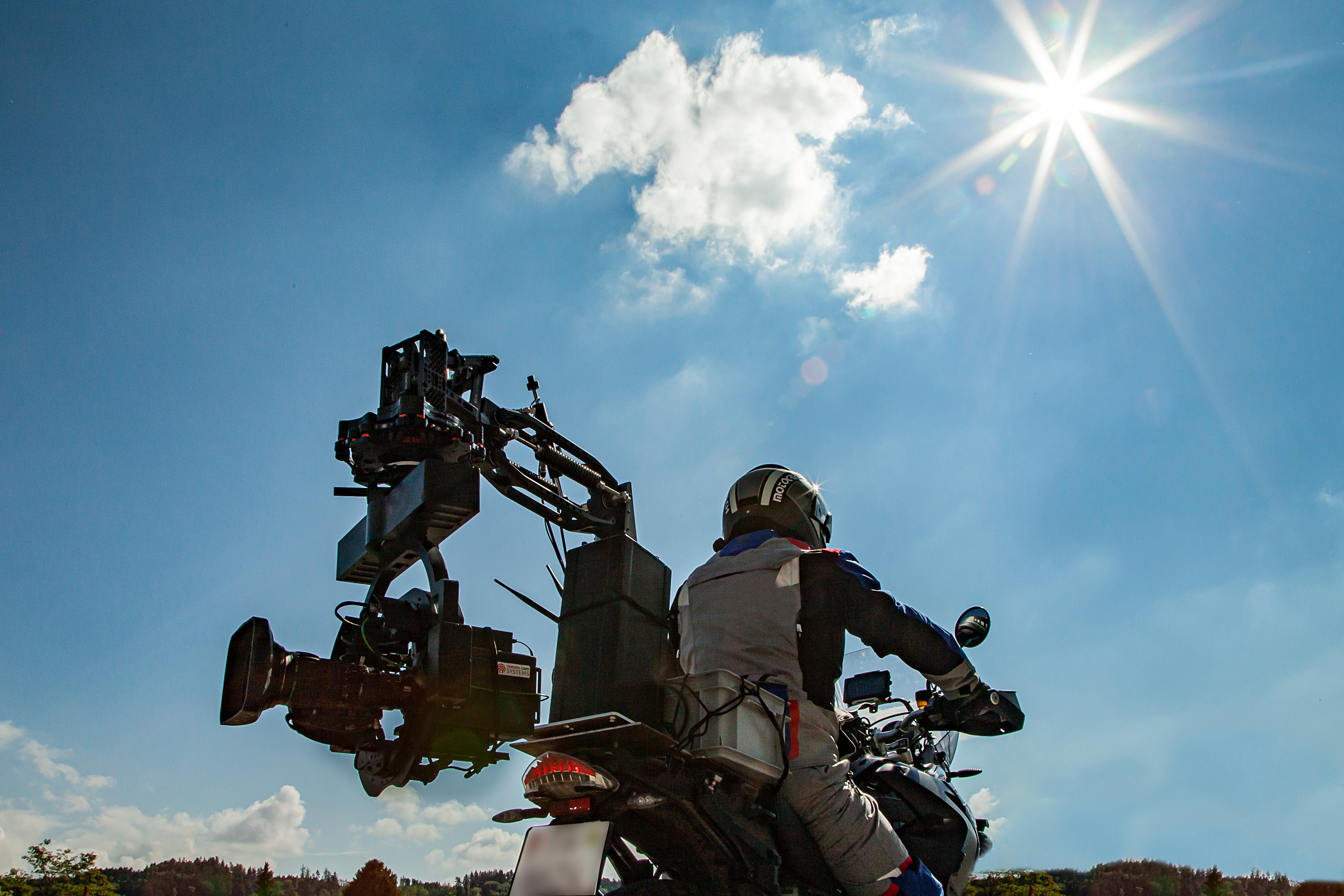

The Black Arm is a 3-axis damping system to compensate for movement errors and vibrations in gimbals on vehicles. The Black Arm can be attached to vehicles such as cars, off-road vehicles, boats, snowmobiles, golf carts, etc. Thanks to hydraulic dampers, it gives filming the necessary speed. So not a second of the fast-paced ride is missed.
Technical specifications
Black arm
– 3-axis damping system
– Camera weight 5 – 32kg possible
– Single or double suspension possible
– Adjustable damping effect of all axes
– 22 steps adjustable hydraulic damper
– Incl. Base Plate with mounts for MoVi and Ronin gimbals
– Cheese Plates on each side for mounting accessories
Technical specifications
– Reduces high frequency vibrations
– Different weight classes available
– Five different weight ranges available
– Weight classes from 7kg – 34kg possible
– Available as wire AVM or tranquilizer
Mounting
– Simple assembly
– Clamp to a standard 48-52mm speed rail.
– Batteries or Kenyon gyros mounted
