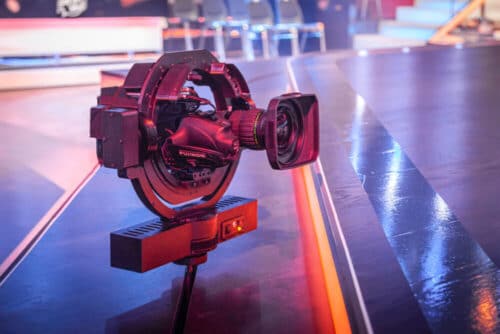

RCS REMOTEHEAD: 3 AXES
The state of the art:
The 3-axis RemoteHead is the most common gimbal in the industry. Tilt, pan and roll are stabilized and let the camera glide along totally smoothly despite uneven, jerky movements. Whether on rails or on ropes, whether suspended or directly above the ground – this RemoteHead guarantees you a smooth camera movement.
Technical progress for the RCS RemoteHead
The RCS RemoteHead is manufactured directly at our Swiss headquarters in Aadorf. For the construction, we rely on modern building materials such as carbon, aluminum and ABS plastic. These materials keep the weight down while providing a beautiful system design. The 3-axis RemoteHead has stabilized the two axes Tilt and Pan. Thus, the focus is on the two most important axes, making the RemoteHead somewhat narrower and more manageable. Thanks to the modern suspension system, the RemoteHead can also be mounted at great heights for spectacular shots.
Flexibility made to measure

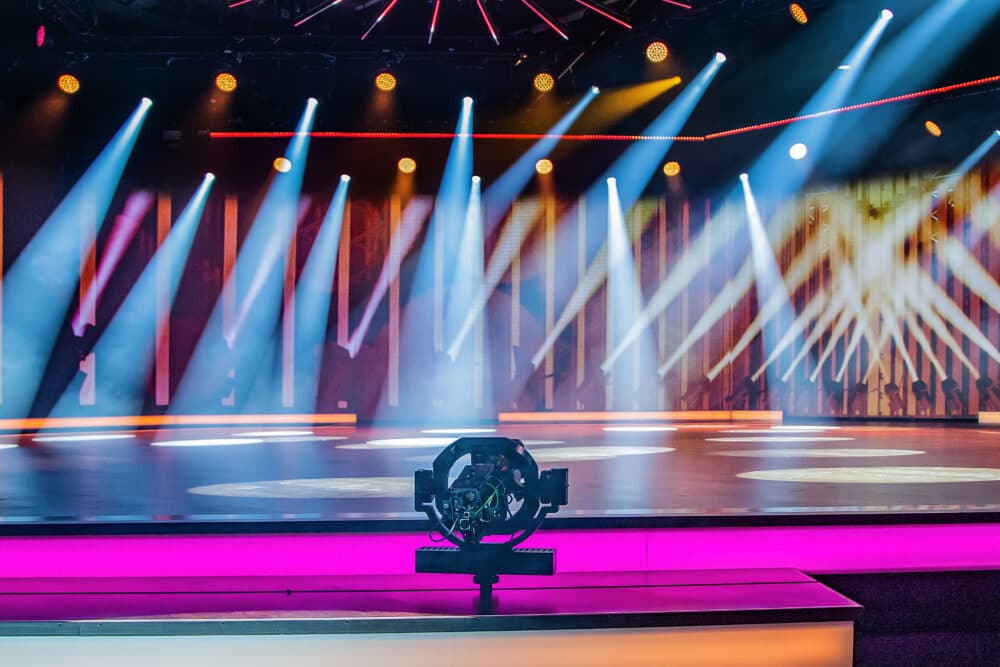

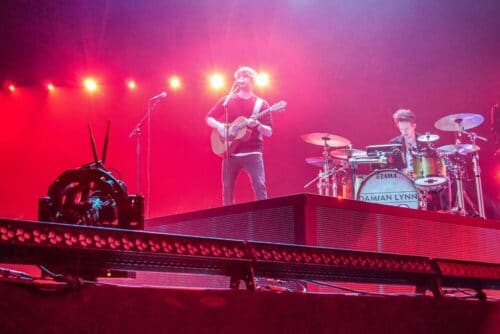

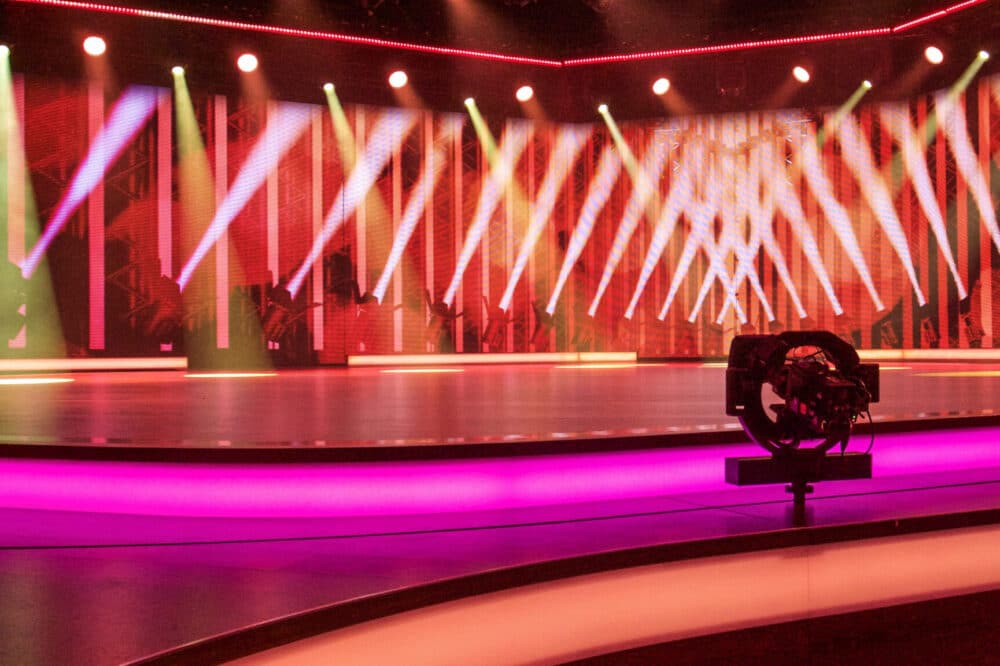

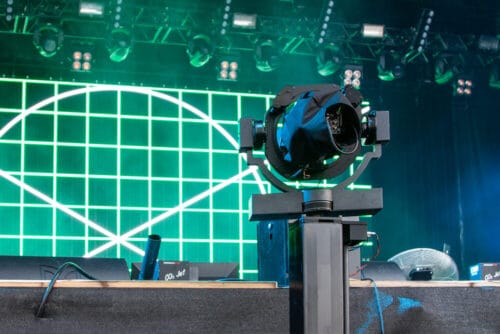

It was important to our engineering team that the camera could be customized to meet the specific needs of our customers. Whether the camera is to be placed on a stage scaffold or hanging from the ceiling in a studio, our engineers can mount the RemoteHead in the desired location with their usual professionalism and offer the images you want for your event or TV production.
Proven control with great flexibility
The RCS remote head is controlled via a remote control.
Technical specifications
3 axes gimbal
– 3 axes IMU stabilization
– 2 x 6 axis gyro for perfect stabilization on all axes
– Length: 100mm, Width: 440mm, Height: 440mm
– Gimbal weight 8 kg
– Maximum camera weight 8 kg
– Maximum camera size of 200mm
– Requires 12 – 16 volt power supply
– Software MAC or PC
– 3G SDI slip ring for video transmission
– 2 RJ 45 ports for network TCP-IP
– 2 Lemo power connectors 12 Volt for camera or accessories (maximum 8 A)
– Control via network UDP protocol
– Software update port
Control
– Length: 405mm, Width: 180mm, Height: 85mm
– Display 1.9 inch
– Power supply via network RJ45 POE 24 Volt
– Joystick control for PAN / TILT
– Speed control for pan / tilt and zoom
– Zoom control via zoom wipe
– Focus control
– PAN / TILT / ZOOM / FOCUS axis Invertible
– Zoom compensation for pan / tilt adjustable
– Zoom limit adjustable
RemoteHead
– 4k support through fiber optic slip ring or 12G SDI
– Augmented reality or virtual reality protocol support
– Zomm / Focus control for Canon or Fujinon lenses
– Zoom / focus control via motors for film cameras
